Configuring/Enabling HTTPS on WallboardFX – UnifiedFX

1. Create a self-signed certificate and Assign

In order to create a self-signed certificate.

Open Windows PowerShell in Administrator Mode
Retrieve FQDN to create a certificate

The following command can be used in order to retrieve a fully qualified domain name for the local pc/server.

[System.Net.Dns]::GetHostEntry([string]$env:computername).HostName

Once the above command is executed, the command will return fully qualified domain name/s.

Create a Certificate with the required DNS name.

The following sample command assumes the FQDN returned by the above command is “mydnsaddress.com”

$Certificate = New-SelfSignedCertificate -DnsName mydnsaddress.com  -CertStoreLocation "cert:\LocalMachine\My"

$Thumbprint = $Certificate.Thumbprint;

NOTE: The created certificate is stored in $Certificate and the Certificate Thumbprint is stored in $Thumbprint variable

Assign the certificate to local endpoint.

netsh http add sslcert ipport=0.0.0.0:8182 certhash=$Thumbprint appid="{00000000-0000-0000-0000-AABBCCDDEEFF}"

NOTE: The above example assigns the certificate to an application running on port 8182(we can use default 443 as well) using the Certificate Thumbprint created in the above step

5. Edit the WallboardFX configuration

Once the above step is completed, open the following file using a text editing tool such as Notepad or Notepad++

"C:\Program Files (x86)\UnifiedFX\WallboardFX\UFX.ServiceHost.exe.config"

Search Scheme setting section as below

<setting name="Scheme" serializeAs="String">
        <value>http</value>
 </setting>

Now change the value http to https then save the configuration file.

6. Change WallboardFX port from Local Machine Registry setting.

Open Registry Editor

Once the above steps are completed restart the WallboardFX windows service(“Unified Service Host”) and browse to https://mydnsaddress.com:8182 for a secure connection.

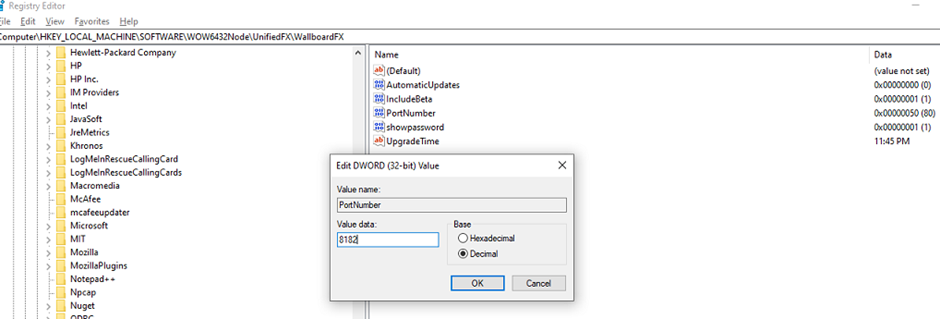

Locate following registry key for “PortNumber” [HKEY_LOCAL_MACHINE\SOFTWARE\WOW6432Node\UnifiedFX\WallboardFX]

Provide the same PortNumber, you mentioned during the certification generation step above.

Once the above steps are completed restart the WallboardFX windows service(“Unified FX Service Host”) and browse to https://mydnsaddress.com:8182 for a secure connection.

2. Assign an existing certificate

In order to use an existing certificate user is required to have the Certificate Thumbprint.

Open Windows PowerShell in Administrator Mode
Assign the certificate to local Application port

$Thumbprint=’B4E3F0F41D267BFD74C16416C3B1D9E32C1DB607’

netsh http add sslcert ipport=0.0.0.0:8182 certhash=$Thumbprint appid="{00000000-0000-0000-0000-AABBCCDDEEFF}"

NOTE: The above example assigns the certificate to an application running on port 8182 with the Thumbprint “B4E3F0F41D267BFD74C16416C3B1D9E32C1DB607”

3. Edit the WallboardFX configuration
